Single-stretched PI film · global supply

Amber polyimide film supply and material solutions from the source factory.

Manufacture single-stretched amber PI film from 18μm to 150μm, with finished roll width up to 1180mm and adjustable amber shade. Our team supports overseas buyers with film thickness, roll format, color depth, and downstream application requirements.

Start Project Consultation View Film Range

18μm-150μm thickness 25μm / 50μm common thickness Finished roll width ≤1180mm 500m-3000m roll length

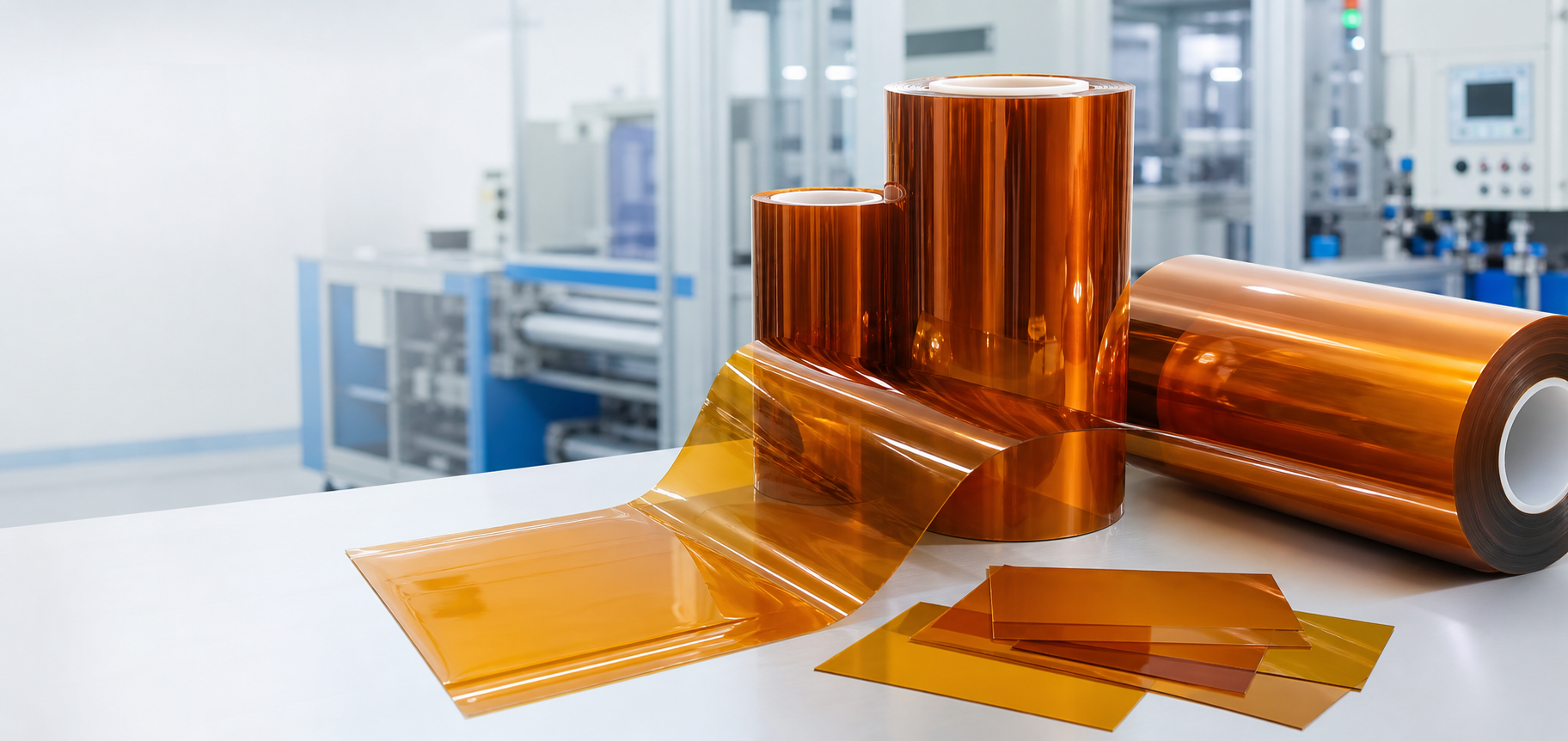

Amber polyimide film rolls in a clean factory setting

Material Single-stretched amber PI film 18μm-150μm · finished rolls ≤1180mm · shade controlled

Downstream product supply

Start from our PI film. Continue to tape materials, slit rolls, sheets, die-cut insulation, and laminated structures.

View Converted Products Built on the same amber single-stretched PI film base.

Product range

Start with single-stretched amber PI film. Quote by thickness, roll width, and application.

Single-Stretched Amber PI Film

Main production film for electrical insulation, flexible circuits, thermal barriers, and high-temperature tape substrates.

18μm-150μm production thickness
Common thickness: 25μm / 50μm
Amber color, shade adjustable
Heat-resistant and electrically insulating

Wide Finished Rolls

Finished rolls are supplied within 1180mm width to match converters, tape coaters, die-cutters, distributors, and industrial insulation buyers.

Finished roll width up to 1180mm
Standard width: 1040mm
Roll length: 500m-3000m
Export packaging and labeling

Slitting & Sample Matching

Amber shade, slit-roll format, and sample preparation can be aligned before bulk order so engineering validation and purchasing review use the same material direction.

Light to deep amber options
Slitting support available
Sample confirmation before bulk order
Application-based technical discussion

Amber PI film roll inspection and export packing preparation — **Inspection, wrapping, and sample preparation** Factory-side checks support shade matching, sample validation, and export-ready roll handling.

Source-factory advantage

One source film base gives buyers tighter control from material selection to downstream conversion.

CorePI focuses on one clear material platform: single-stretched amber PI film from 18μm to 150μm, finished rolls within 1180mm, and adjustable amber shade. This focus makes material matching, sample validation, repeat orders, and converted product development more direct.

Amber PI film roll production line in a factory workshop — **Roll-to-roll source production** Production-line control supports film thickness, roll format, and repeat supply.

01 Focused thickness program

18μm-150μm production coverage, with 25μm and 50μm as common thickness choices, supports thin insulation, handling strength, tape coating, sheet conversion, and die-cut barriers.

02 1180mm finished-roll capability

Finished rolls within 1180mm, standard 1040mm width, and 500m-3000m roll length give converters more room for coating width, slitting plans, yield control, and distributor inventory formats.

03 Amber shade matching

Light to deep amber control supports appearance targets, customer sample matching, and repeat-order consistency.

04 Film-to-product continuity

The same base film can move into slit rolls, sheets, tape materials, die-cut insulation, and laminated structures with clearer material continuity.

Industry advantages

Advantages of this single-stretched amber PI film across downstream industries.

Electrical insulation

Stable insulation performance with flexible thickness selection.

For electrical insulation buyers, the key advantage is the 18μm-150μm range: it helps balance dielectric performance, wrapping flexibility, layer thickness, and heat resistance across motors, transformers, cables, and electronic assemblies.

Evaluation dimensions What electrical insulation buyers usually compare

Dielectric strength Thermal endurance Thickness stability Wrapping flexibility Roll width and slitting Batch consistency

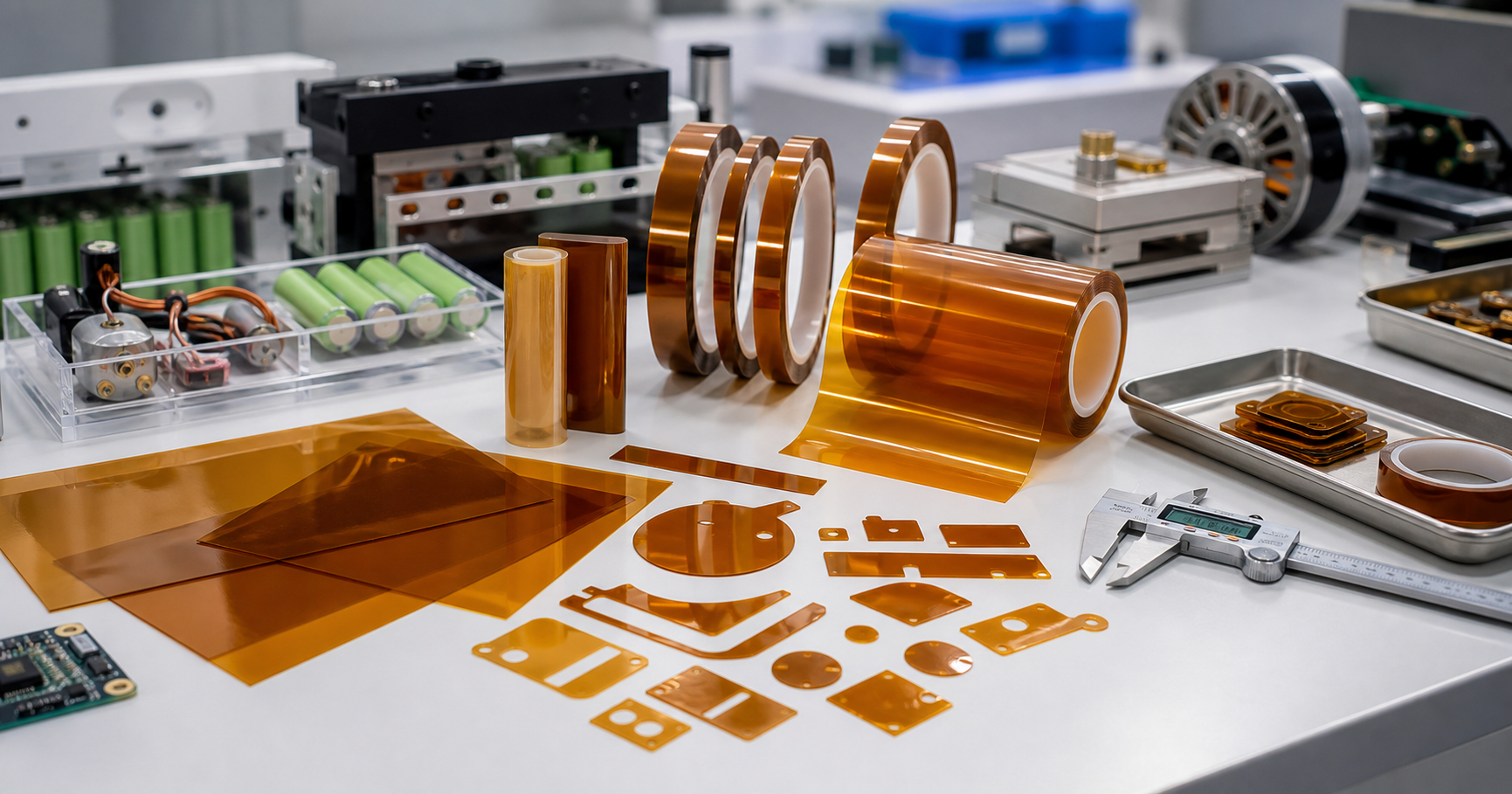

Amber PI film sheets, slit rolls, and die-cut insulation samples — **From film to sample formats** Slit rolls, sheets, tape material direction, and die-cut insulation validation.

For tape converters Wide rolls within 1180mm reduce format limitations. Amber shade control and thickness selection support coating, slitting, and high-temperature masking tape production.

For insulation buyers 18μm-150μm thickness coverage supports layer insulation, barriers, motor systems, and high-temperature electrical assemblies where material stability matters.

For electronics and FPC teams Source-factory control helps engineering teams validate thickness, surface appearance, sample rolls, and repeat purchase consistency before scale-up.

Supplier capability

Supply capability built around single-stretched amber PI film.

CorePI supports overseas buyers with a focused PI film platform, controlled amber appearance, wide finished-roll supply, sample validation, and project-ready documentation. The offer is specific enough for engineering review and practical enough for purchasing.

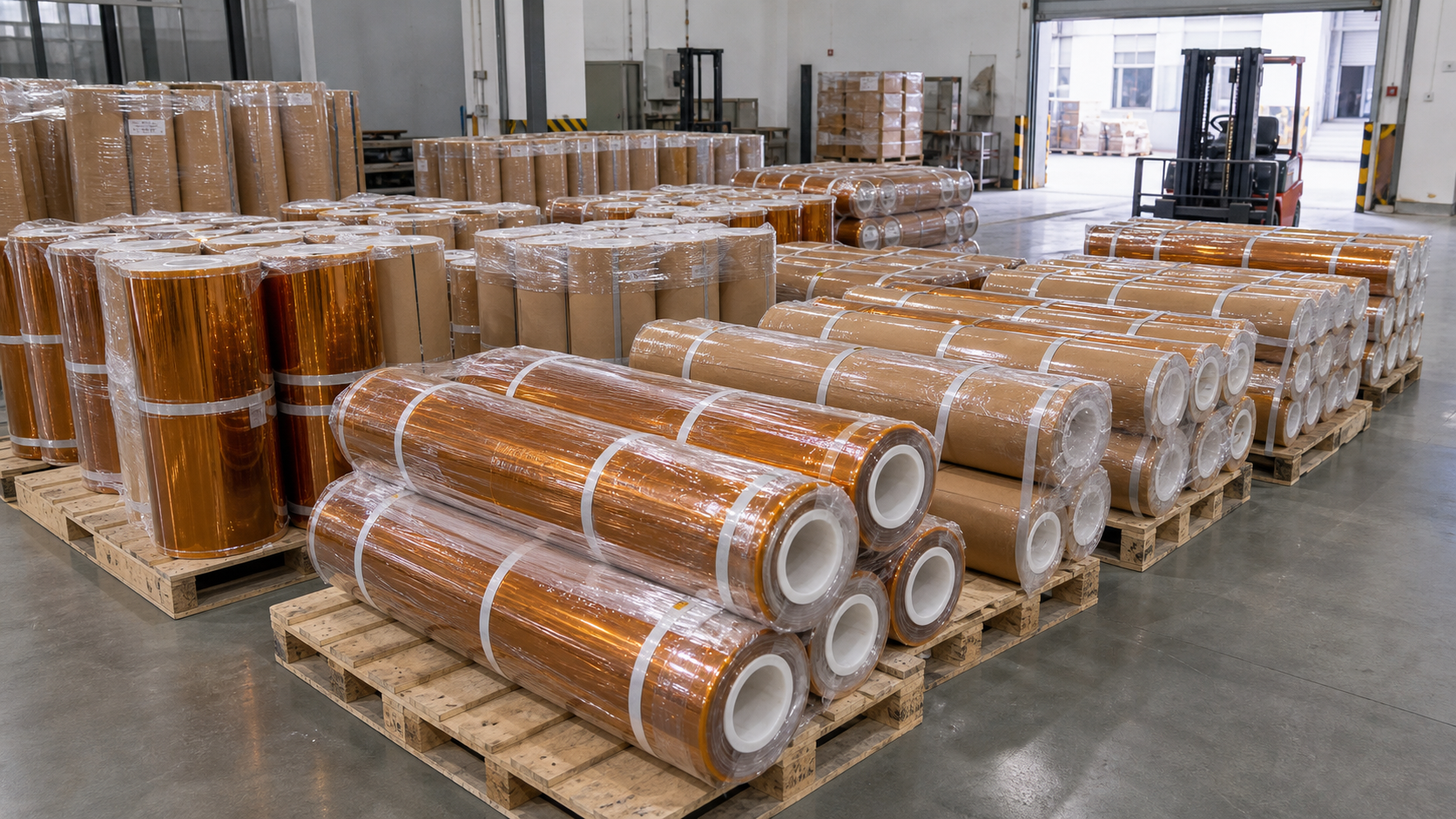

Finished amber PI film rolls prepared for shipment in a factory dispatch area — **Finished roll staging for shipment** Organized outbound roll batches support repeat orders and overseas project delivery.

18μm-150μm film program A defined production range with common 25μm and 50μm options supports electrical insulation, FPC evaluation, tape substrate use, battery barriers, motor insulation, and industrial conversion.

Finished rolls within 1180mm Wide roll supply, 1040mm standard width, and 500m-3000m roll length support coating, slitting, sheeting, die-cutting, and distributor stock planning with fewer width limitations.

Amber color depth control Light-to-deep amber adjustment supports sample matching, visual consistency, and downstream product appearance requirements.

Same-material conversion route Raw film supply can extend into slit rolls, sheets, tape materials, die-cut insulation, and laminated structures based on the same PI film platform.

Validation-ready samples Sample packs, slit roll samples, and shade-matching samples support engineering checks before order planning.

Export project support TDS, SDS, RoHS / REACH information, English labeling, neutral packing, and project-based quotation support overseas procurement.

Mechanical performance data Tensile strength values of TD ≥180 MPa and MD ≥220 MPa, with TD and MD elongation ≥40%, support technical review.

Electrical and thermal data Volume resistivity ≥1.0×10^16 Ω·m, surface resistivity ≥1.0×10^16 Ω, and thermal shrinkage <35 ppm/℃ support insulation-focused evaluation.

Typical specification

Clear data helps engineers decide faster.

Product name Polyimide Film

Film type Single-stretched polyimide film

Color Amber, shade adjustable from light to deep

Thickness 18μm-150μm production range

Common thickness 25μm / 50μm

Maximum finished roll width Within 1180mm

Standard width 1040mm

Roll length 500m-3000m

Format Finished roll, slit roll, sheet, sample pack

Slitting Available

Tensile strength TD ≥180 MPa / MD ≥220 MPa

Elongation TD & MD ≥40%

Volume resistivity ≥1.0×10^16 Ω·m

Surface resistivity ≥1.0×10^16 Ω

Thermal shrinkage <35 ppm/℃

Working properties Heat resistance, insulation, chemical resistance, dimensional stability

Primary markets Electronics, FPC, motors, batteries, tapes, industrial insulation

Engineering project consultation

Start with film requirements, application conditions, and validation targets.

Project information such as target thickness, roll width, roll length, slitting need, application conditions, validation plan, annual quantity, country, and reference material data helps our team prepare a focused material review.

Material selection, samples, and supply planning.

Share your application, specification targets, and project stage. Film details can be confirmed during consultation.

Open Project Consultation Sample Evaluation

Engineering project review

Start project consultation from source-film requirements.

CorePI reviews target thickness, roll format, Amber shade, slitting needs, application conditions, validation requirements, and downstream conversion direction before recommending a material path.

Submit Project Requirements View Conversion Capability
